Oxford Pro Journey Standaid

Oxford Pro Journey Standaid

Units: Each

In stock Out of stock
Price: £2110.68 (Inc. VAT)
Price: £1758.90 (Ex. VAT)

Compact, portable and innovative

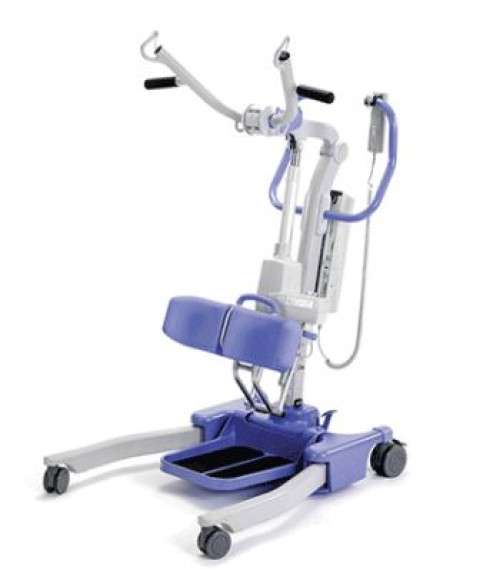

The Oxford Journey is an ultra-compact, portable folding stand aid with best-in-class functionality. Its unique adjustable cow-horn mechanism supports a wider range ofpatient heights and sizes, allowing your facility to have one lift that meets the needs of many.

  • Safe working load 155kg / 24st / 342lbs
  • Compact folding design for easy storage and transportation
  • Unique adjustable cow horn function accommodates a range of patients
  • Smart Monitor diagnostic and service controls as standard
  • Ergonomic design considerations and interaction points
  • Height adjustable knee pad with retractable safety belt
  • Integrated safety system to help protect patients
  • Removable foot tray for rehabilitation activity

    SpecificationImperialMetric
    Safe Working Load 341 Ibs 155 kgs
    Maximum Overall Length 39.4 inches 1000 mm
    Minimum Overall Length 36.8 inches 935 mm
    Maximum Overall Height 63.0 inches 1600 mm
    Minimum Overall Height 44.5 inches 1130 mm
    Height (Folded) 20.5 inches 525 mm
    Depth (Folded) 41.0 inches 1040 mm
    Widest Point (Between support handles) 26.8 inches 680 mm
    Maximum Height to Attachment Point 60.2 inches 1530 mm
    Minimum Height to Attachment Point 28.4 inches 720 mm
    Turning Radius 45.1 inches 1145 mm
    Legs Open – External Width 38.2 inches 970 mm
    Legs Open – Internal Width 34.5 inches 875 mm
    Legs Closed – External Width 27.0 inches 685 mm
    Legs Closed – Internal Width 22.2 inches 590 mm
    Overall Height of Legs 4.3 inches 110 mm
    Ground Clearance 1.2 inches 30 mm
    Front Twin Castors 3.0 inches 75 mm
    Rear Braked Castors 4.0 inches 100 mm
    WeightsImperialMetric
    Mast, Base & Boom Assembly 82.4 Ibs 37.4 kgs
    Power Pack 6.2 Ibs 2.8 kgs
    Total 88.6 Ibs 40.2 kgs
    Base Assembly 30.2 Ibs 18.2 kgs
    Mast & Boom Assembly (not including battery) 42.3 Ibs 19.2 kgs
